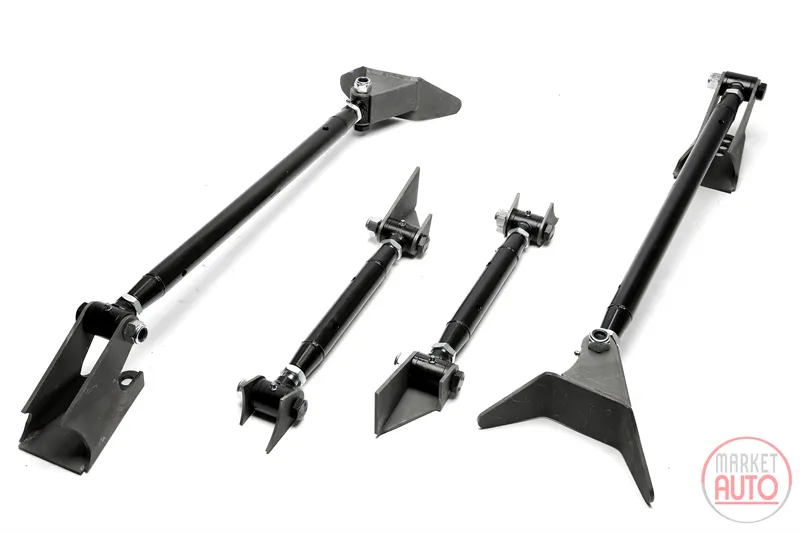

Universal Dreieck "trianguliert" 4-Link-Kit

Basic kit for welding Contents (dimensions, see data sheet): 2 x tie rod LFUN101 Tie rod, 3-part adjustable Adjustment range: 330-410mm / 38mm eye / PU socket M16x45mm 1 x Frame bracket for welding - driver's side 1 x frame bracket for welding - passenger side 2 x angle plates small - both sides 2 x angle plates large - both sides maximum length over all with mounted brackets: 580mm 2 x Tie rod LFUN102 Tension strut, 3-part adjustable adjustment range: 620-700mm / 38mm eye / PU bush M16x45mm 1 x Frame bracket for welding - driver's side 1 x frame bracket for welding - passenger side 2 x frame brackets V-shape with 3 holes = 16mm - both sides maximum length over all with mounted brackets: 920mm Fastening set: 7 x screws M16x1,5x70mm 7 x nuts M16x1,5 self-locking
